Product Details:
Payment & Shipping Terms:
|
Application:: | Ventilator /Exhaust Fan | Alloy Or Not:: | Alloy |
---|---|---|---|
Shape: | Circle/ Disc | Grade: | 1100 1050 |
Thickness: | 0.5-1.5mm | Diameter: | 120-1000mm |
Special Technology:: | CC And DC Material | Packing:: | Wooden Case |
High Light: | aluminum disc,aluminum disk |

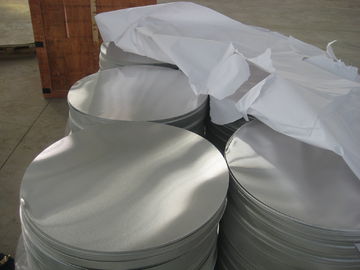

High quality of Aluminium Circle/Disc 1100 1050 H14/18 0.5mm to 1.5mm dia form 120mm to 1000mm for the ventilator Fan
Alloy : 1100 1050 1060 3003.
Temper H14 H18
Application: Ventilator /Exhaust Fan etc.
Thickness: 0.5-1.5 mm.
Diameter: 120-1000mm.
Packing: in seaworthy wooden pallet or case and one ton per package.
Surface: mill finished,clean,bright,mirror,flat,no wholes,no scratches, no oxidation.
Alloy |
Temper |
Specification |
|
Thickness(mm) |
Diameter(mm) |
||
1050,1060,1100 |
H14,H18 |
0.50-1.5 |
120-1000 |
Chemical Compostion
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
1060 |
0.250 |
0.350 |
0.050 |
0.030 |
0.030 |
- |
0.050 |
0.030 |
99.6 |
1070 |
0.200 |
0.250 |
0.040 |
0.030 |
0.030 |
- |
0.040 |
0.030 |
99.7 |
1100 |
Si+Fe:0.950 |
0.05-0.2 |
0.050 |
- |
- |
0.100 |
- |
99.0 |
|
Description:
Specifications of Aluminum Circle /Disc/Round:
1. Grade:
1000 Series:1050 1060 1070 1100 1200 1235 ect.
3000 Series:3003 3004 3005 3102 3104 3105 3A21 ect.
5000 Series:5005 5052 5083 5086 5154 5182 5251 5754 ect.
6000 Series:6061 6063 6082 6A02 ect.
7000 Series:7050 7075 7475 ect.
8000 Series:8006 8011 8079 ect.
2. Thickness0.20mm-320mm
3. Width:1220 or per customer’s request
5. Temper:all tempers,H1X,H2X,H3X,O HXXX
6. Continuous casting and hot rolled both available.
