Product Details:
Payment & Shipping Terms:
|
| Surface: | Mill Finished | Alloy: | 1100 1050 1060 3003 |
|---|---|---|---|
| Dia: | 150mm To 1100mm | Thickness: | 0.60mm To 6.0 Mm |
| High Light: | aluminium discs,aluminum disc |
||

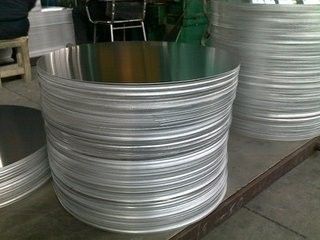

Kettle Material Aluminium Cutting Disc / Deep Drawing Aluminum Circle 1050 1060 3003
Cooking aluminium circle
1. alloy 1050,1070,3003
2. Temper :H16 ,O
3. the thickness 0.6mm to 6 mm
4. dia 160mm to 1100 mm
Type | Chemical Composition | ||||||||
Si | Fe | Cu | Mn | Mg | Zn | Ti | other | Al | |
1060 | 0.20 | 0.25 | 0.30 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 99.60 |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.50 |
1050A | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.07 | 0.05 | 0.03 | 99.50 |
3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.16 |
| 0.10 | 0.15 | 0.10 | surplus |
3003 | 0.60 | 0.70 | 0.05-0.20 | 1.0-1.5 |
| 0.10 |
| 0.15 | surplus |
Product Features:
a. Wide range of selection on circles' size including customized shape and size;
b. Excellent deep drawing and spinning quality;
c. RoHS and REACH compliance.
Manufacturing of Aluminum Circle / Disc / Round:
Decoiler → Accumulator→Tension Leveller →Acid&Alkali Cleaner → Rinse → Conversion Treatment → Priming coater →Infrared Curing Oven →Main coater → Floatation Curing Oven →Strippable Film Applicator → Exit Accumulator →Recoiler

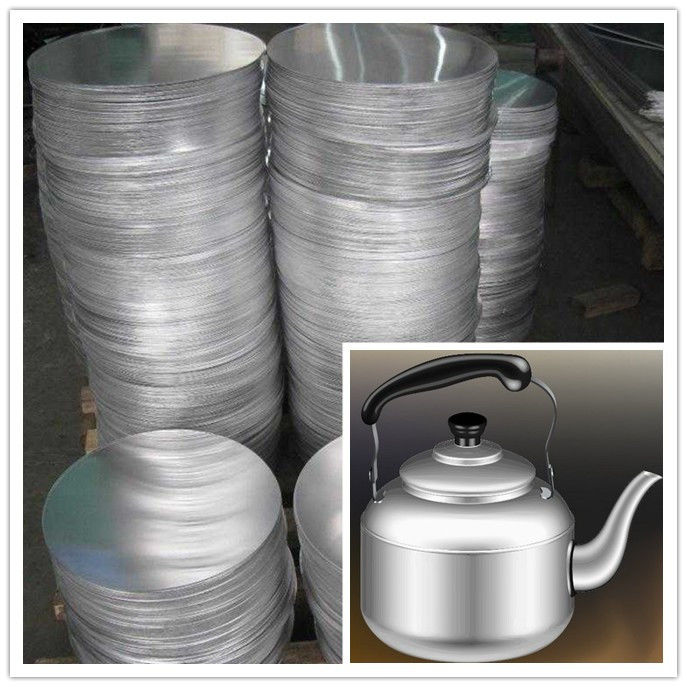

Application of Aluminum Circle / Disc / Round:
aluminium circle for pot making,
aluminium disk for pot,
aluminium circle,
pot circle,
cooking utensils,
cooker, pan,pot,boiler,
cookware making
road sign and traffic sign, and signal plate
