Product Details:
Payment & Shipping Terms:
|
| High Light: | aluminium foil roll,aluminium foil manufacturing process |
||
|---|---|---|---|

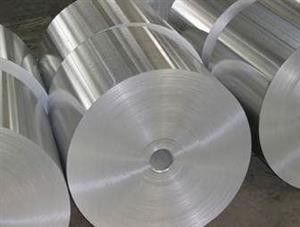

8011 14 / 3003 H22 H24 Big Roll Coil Hydrophilic Aluminium Foil for Semi-rigid Container SRC
Product Brief Introduction:
(Ⅰ) Aluminum Coil/Foil Used for Air Conditioner and Others (packing.Cable and pipe)
|
Alloy |
Temper |
Physical Properties under Room Temperature |
||
|
U.T.S 6 b ,Mpa |
Elongation e% |
Cupping Value IE,mm |
||
|
1100 1235 8079 |
O |
80～110 |
≥20 |
≥6.0 |
|
H22 |
100～135 |
≥16 |
≥5.5 |
|
|
H24 |
115～145 |
≥12 |
≥5.0 |
|
|
H26 |
125～160 |
≥8 |
≥4.0 |
|
|
H18 |
≥160 |
≥1 |
-- |
|
|
Mark: Special specifications you need can be negotiated and marked in the contract |
||||
|
Thickness & Tolerance mm |
Width & Tolerance mm |
Core I. D. mm |
Max. Roll O. D. mm |
Core Material |
|
0.009～0.02 |
100～1100 ±0.5 |
Φ75,Φ150,Φ200 |
Φ≤1400 |
Paper, Aluminum, Steel |
◆The Coat Properties of Hydrophilic Coated Foil:
|
No. |
Item Index |
Technology Index |
|
|
1 |
Film Thickness |
1.0-2.0μm(Average Thickness for Single Face) |
|
|
2 |
Hydrophilicity |
Initial Contact Angle |
Initial Contact Angle≤10° |
|
Persistent Contact Angle |
Persistent Contact Angle≤20° |
||
|
3 |
Adhesive Power |
Cupping Testing(5mm pressed by): no Flake |
|
|
4 |
Corrosion Resistance |
Salt Spray Testing(72 hours) |
|
|
5 |
Alkali Resistance |
Soaked in 20℃,20%NaOH for 3 minutes |
|
|
6 |
Solvent Resistance |
Weight Loss of Sample≤1% |
|
|
7 |
Stability |
under 200℃ for 5 min, the color will not change |
|
|
8 |
Oil Resistance |
Soaked in volatile oil for 24 hours without bubbling |
|
|
9 |
Coat Odor |
No Peculiar Odor |
|
|
10 |
Abrasion against Mould |
The Same as Common Aluminum Foil |
|
