Product Details:
Payment & Shipping Terms:
|
| Surface: | Mill Finshed | Alloy: | 8011 8006 |
|---|---|---|---|
| Material: | DC And CC | ||
| High Light: | aluminium foil roll,aluminium foil rolls |
||

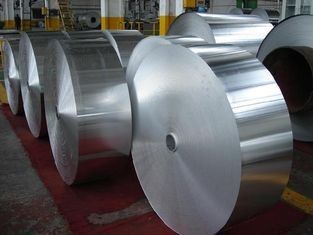

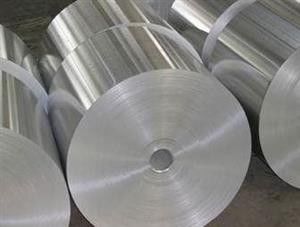

Mill finished Aluminum Foil 8011 8006 O 0.12mm to 0.25mm for Air Conditioner
Product Brief Introduction:
(Ⅰ) Aluminum Coil / Foil Used for Air Conditioner
|
Alloy |
Temper |
Physical Properties under Room Temperature |
||
|
U.T.S 6 b ,Mpa |
Elongation e% |
Cupping Value IE,mm |
||
|
1100 1235 8079 |
O |
80～110 |
≥20 |
≥6.0 |
|
H22 |
100～135 |
≥16 |
≥5.5 |
|
|
H24 |
115～145 |
≥12 |
≥5.0 |
|
|
H26 |
125～160 |
≥8 |
≥4.0 |
|
|
H18 |
≥160 |
≥1 |
-- |
|
|
Mark: Special specifications you need can be negotiated and marked in the contract |
||||
|
Thickness & Tolerance mm |
Width & Tolerance mm |
Core I. D. mm |
Max. Roll O. D. mm |
Core Material |
|
0.12～0.25 |
200～600 ±0.5 |
Φ75,Φ150,Φ200 |
Φ≤1400 |
Paper, Aluminum, Steel |
