Product Details:
Payment & Shipping Terms:
|
| Application:: | Cookware Kitchen Utensils Ect. | Alloy Or Not:: | Alloy |
|---|---|---|---|
| Shape: | Circle | Diameter: | 120mm-1300mm |
| Thickness: | 0.4mm-6.0mm | Brand Name: | Shuanglin Jiate |
| Treatment Of Aluminum Discs:: | Mill Finished | Color: | Metal Silver |
| High Light: | aluminum disc,aluminum disk |
||

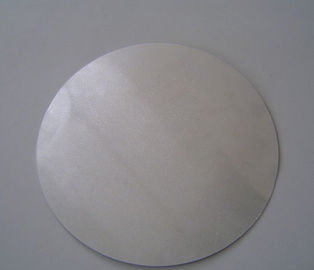

No Printing 1050 1060 3003 Aluminium Disc/Circle Mill Finished for Kitchen Utensils
Aluminium Disc/ Circle
Alloy : 1050 1060 3003.
Temper O H12 H14 H16 H18
Application: cookware utensils, basin etc.
Thickness: 0.4-6.0mm.
Diameter: 120-1300mm.

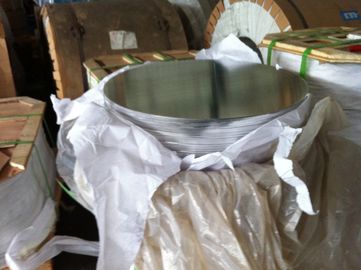

Packing: in seaworthy wooden pallet or case and one ton per package.
Surface: mill finished,clean,bright,mirror,flat,no wholes,no scratches, no oxidation.
Cold Rolling Aluminum Circles are widely used in furnitures like tables. But most aluminum circles clients requested are Deep Drawing Quality Aluminum Circle. These aluminum circle are widely used in kitchenware, cookware, reflector-light etc.
Aluminum Discs Features:
1. Wide range of selection on circles' size including customized shape and size;
2. Excellent deep drawing and spinning quality;
3. RoHS and REACH compliance.
|
Temper |
Thickness(mm) |
Tensile Strength |
Elongation% |
Standard |
|
O |
0.36-6 |
60-100 |
MORE THAN 20 |
GB/T91-2002 |
|
H12 |
0.5-6 |
70-120 |
MORE THAN 4 |
|
|
H14 |
0.5-6 |
85-120 |
MORE THAN 2 |
Chemical Compostion
|
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
|
1060 |
0.250 |
0.350 |
0.050 |
0.030 |
0.030 |
- |
0.050 |
0.030 |
99.6 |
|
1070 |
0.200 |
0.250 |
0.040 |
0.030 |
0.030 |
- |
0.040 |
0.030 |
99.7 |
|
1100 |
Si+Fe:0.950 |
0.05-0.2 |
0.050 |
- |
- |
0.100 |
- |
99.0 |
|
|
3003 |
0.600 |
0.700 |
0.05-0.2 |
1.0-1.5 |
- |
- |
0.100 |
- |
Remains |
Parameters:
| Division | Description | Application | Feature |
| 1000 SERIES | 1050 1060 1070 1090 1100 1235representative series aluminum plate is also known as pure aluminum, in the series in 1xxx series belongs to all the alumina quantity of a maximum number of series. Purity can achieve 99.00% above. | Utensil, decoration, Reflecting plate, printing plate, heatproof plate,cookware | Easy to process and weld,resistant to rust,high,conductibility of electricity and heat,low strength |
| 3000 SERIES | 3xxx series aluminum represents 3003 3004,3005, 3 A21 primarily. And can be called in the 3xxx series aluminum antirust aluminum production process more outstanding. The 3xxx series aluminum plate is by manganese as the main component. Content at 1.0-1.5 between. Is a rust-proof function better series. Conventional application in the air conditioning, the refrigerator, such as car in damp environment | Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building,chemical equipment,Cellular Phone | 20% higher strength than the 1100 series, easily welded and brazed, good antirust,ability Non-heat treatable |
